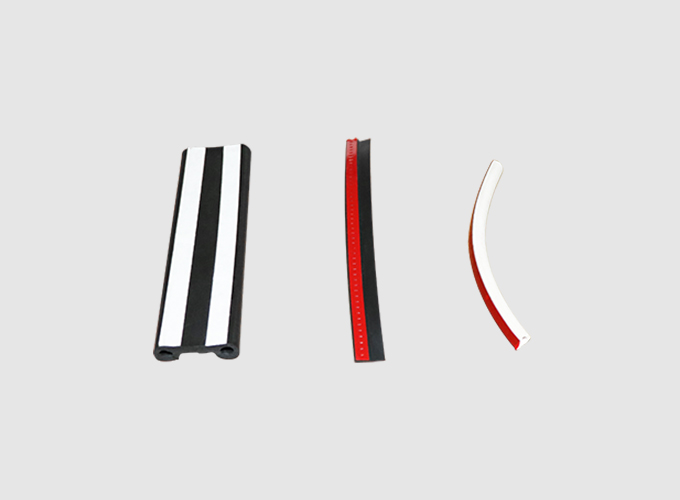

EPDM Tape Profile

Features

  • With 3M/IMEX Tape option
  • Good bonding with sustrate
  • ROHS Compliance
  • REACH Compliance
  • FMVSS 302-Flammability
  • Excellent Ozone Resistance
  • Excellent UV Resistance
  • Resistance Againest Acid and Alkali.
  • Resistance aginest heat.

Technical Specification

Properties Value / Value Range UOM Standard Applied
HARDNESS 70± 5 (Other on request) Shore A ASTM D 2240
TENSILE STRENGTH 70 Min. Kgf/cm2 ASTM D 412
ELONGATION AT BREAK 200 Min. % ASTM D 412
TEAR STRENGTH 15 Min kgf/cm ASTM D 0624
APPLICATION TEMPERATURE -40 ~ 120 °C ASTM 1329
AGE RESISTANCE AT 70 OC FOR 70 HRS   °C ASTM-D573
HARDNESS +10'-5 D ASTM D 2240
TENSILE STRENGTH -25 Max. D ASTM D 412
ELONGATION AT BREAK -35 Max. D ASTM D 412
COMPERSSION SET (%) AT 70 OC FOR 22 HRS 50 Max. % ASTM D 395
OZONE RESISTANCE NO VISIBLE CRACKS   ASTM-D1149
O3 CONCENTRATION 50 pphm
TEST TEMPERATURE 40 °C
ELONGATION 20 %
TESTING DURATION 72 Hrs
